Ergonomic
Efficient
Safe
The smart way to secure loads: with our innovative S-Strap system
The combination of trolleys, expander straps and lashing straps
you have the option of securing goods along the entire length of the loading area.
The load is secured in a standing position, which is easy on the user's back.
The cumbersome process of throwing over the lashing straps is not necessary with the S-Strap.
By eliminating the need to throw over, roll up and stow the lashing equipment, you save time and money,
also because the lashing straps last longer thanks to the material-friendly storage.
The costs for the system pay for themselves after just a few weeks of use.
The risk of accidents is also reduced as the loading area does not need to be accessed to secure the goods.
Our LED lighting, which can be optionally integrated into the rail, also makes work safer and more pleasant.
-Strap Slide und Fix Sets
It is an continuously adjustable belt lift system. The use of aluminum rails in combination with high-quality movable trollies allows maximum flexibility in positioning the lashing equipment along the loading area.
Includes:
8 x 142200007 Trolley Slide with wheels incl. 2 magnets and 2 springs
8 x 142200009 Expander with belt guide
4 x 142200010 Drawstrings
Depending on the vehicle length, you can choose between 3 variants:
142200000 Running rail 12500 mm
142200001 Running rail 7500 mm
142200002 Running rail 3000 mm
Optional:
127557299 Rail interior lighting 4990 mm
127557300 Rail interior lighting 3990 mm
127557301 Rail interior lighting 2990 mm
142200012 Lighting cover 1000 mm
For the intended installation of the running rails the following items are required:
142200005 Assembly kit for running rails
100 Stainless steel blind rivet F5 x 10
1 assembly aid
4 end stoppers:
4 countersunk screws M5 x 20
4 hexagon nuts with M5 lock
For vehicles without a multi-point lashing system, our cost-effective variant with fixed-position trollies is ideal.
Includes:
8 x 142200008 Trolley Fix with wheels incl. 2 magnets, 2 springs
4 x 142200009 Expander set with belt guide 2 expanders per set
1 x Trolley Fix mounting kit
10 stainless steel blind rivets
1 mounting aid
Optional:
142200014 Adapter Fix For attachment to the bows, consisting of two pieces
(If no roof strap attachment is possible or a sliding roof is to be used)
142200016 Assembly kit
4 Hexagon socket head cap screws M5 x 16 galvanized
4 Hexagon nuts with clamping part, galvanized, M5, fixed. 8, DIN 985
8 Washer, galvanized, inner Ø 5.3 mm
6 HONSEL multi-range blind rivet, steel, large head 4.8 x 16.9 K 16
Additional and spare parts
Trolley Slide
incl. 2 magnets and 2 springs, spare part for S-Strap Slide Set
142200007
Trolley Fix
incl. 2 magnets and 2 springs, spare part for S-Strap Slide Set
142200008
Mounting kit for
S-Strap guide tracks
4 end stoppers
100 stainless steel blind rivets F5 x 10
4 pan-head screws M8 x 20
4 hexagon nuts with flange M8
1 mounting aid
Adapter Fix
S-Strap guide track
Adapter lashing strap holder
for attachment to the bows, consisting of two pieces
Placeholder with rollers incl. 2 magnets and 2 springs, spare part for S-Strap Slide Set
142200015
Our S-Strap guide track can be optionally equipped with LED strips. This ensures that the loading area of your truck is optimally illuminated at all times. Made from high-quality aluminum, the running rails are designed to be particularly light and durable.
127557299 FlexLED rail lighting 4990 mm
127557300 FlexLED rail lighting 3990 mm
127557301 FlexLED rail lighting 2990 mm
142200012 Lighting cover 1000 mm
Fastening
The tensioning straps come down with a pulling movement and remain in position above the load so that they can be easily secured. We advise you to fit 15 sets of S-Strap systems per truck. In this way, every load can be securely fastened.
Release

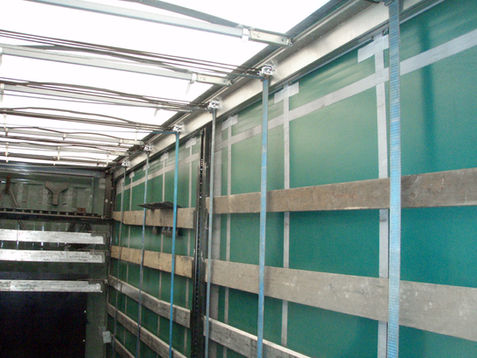

Once the tensioning strap has been released, it moves upwards towards the ceiling using elastic bands. With the help of some magnets, the tensioning straps remain in position at the top. In the rest position all tensioning straps are located on the side and top top of the trailer. The loading space can therefore always be fully utilized.
Use
The S-Strap system can be used for loading and unloading at the rear, but also at the side, regardless of the shape and
height of the load.
